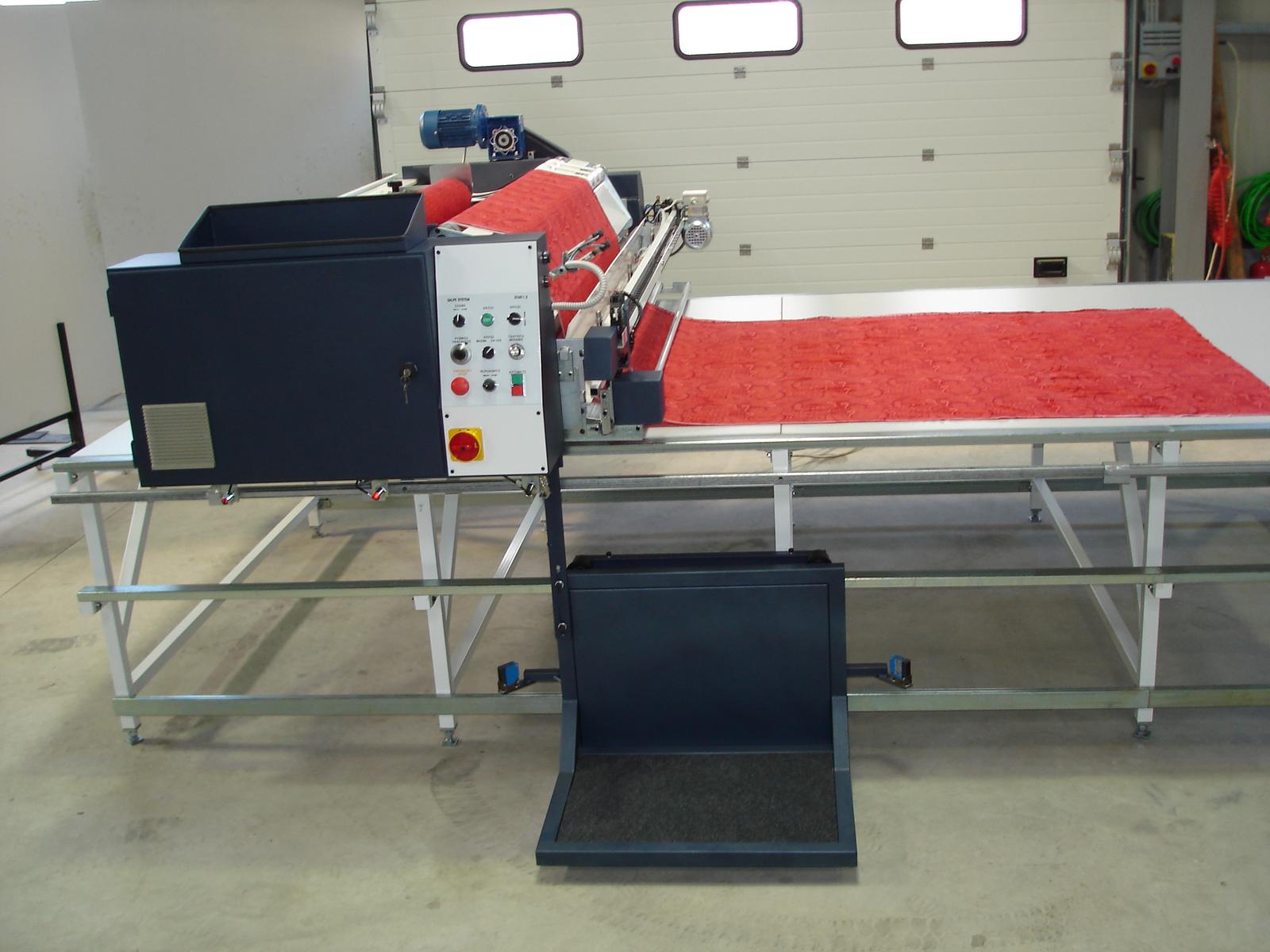

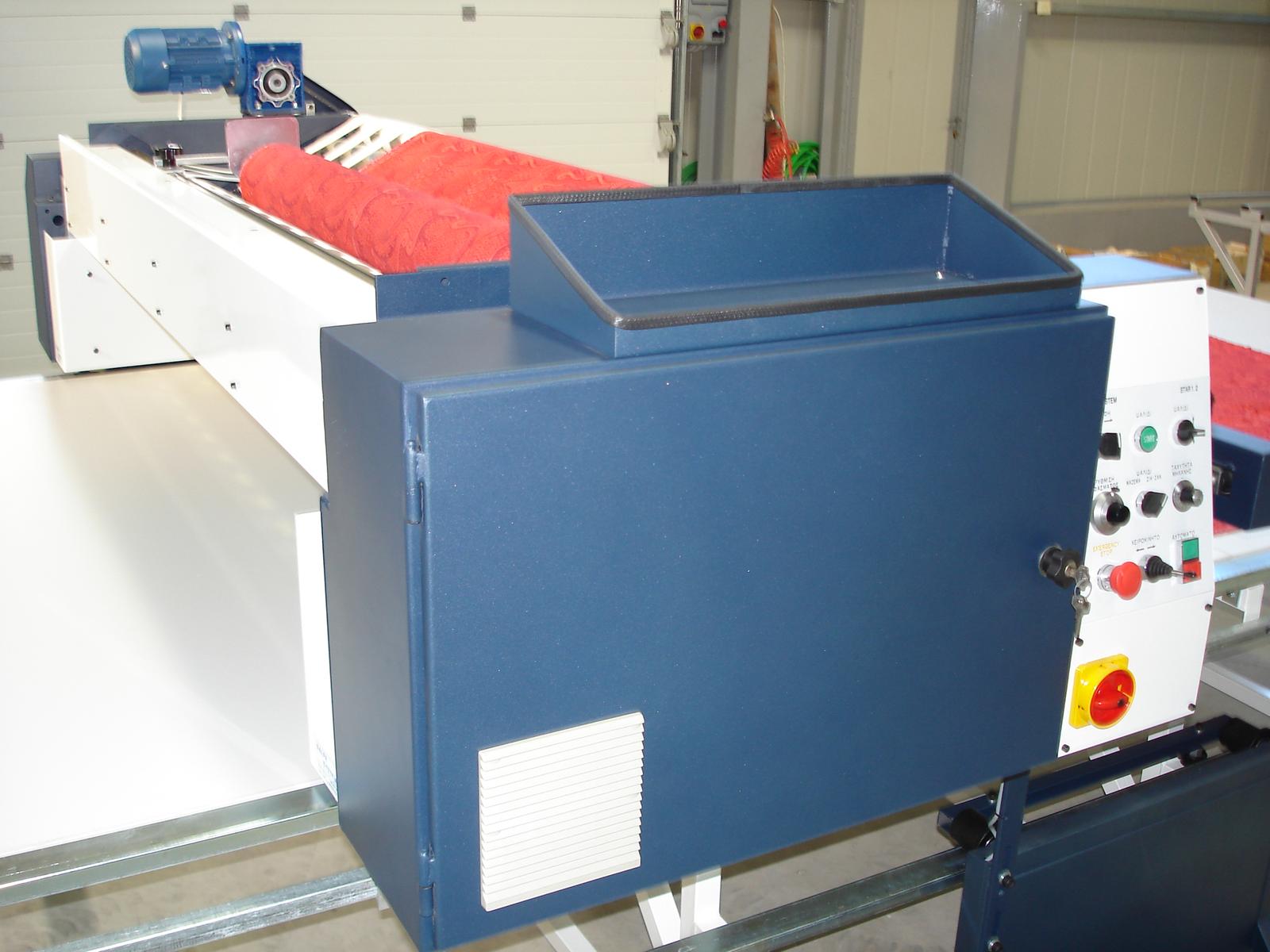

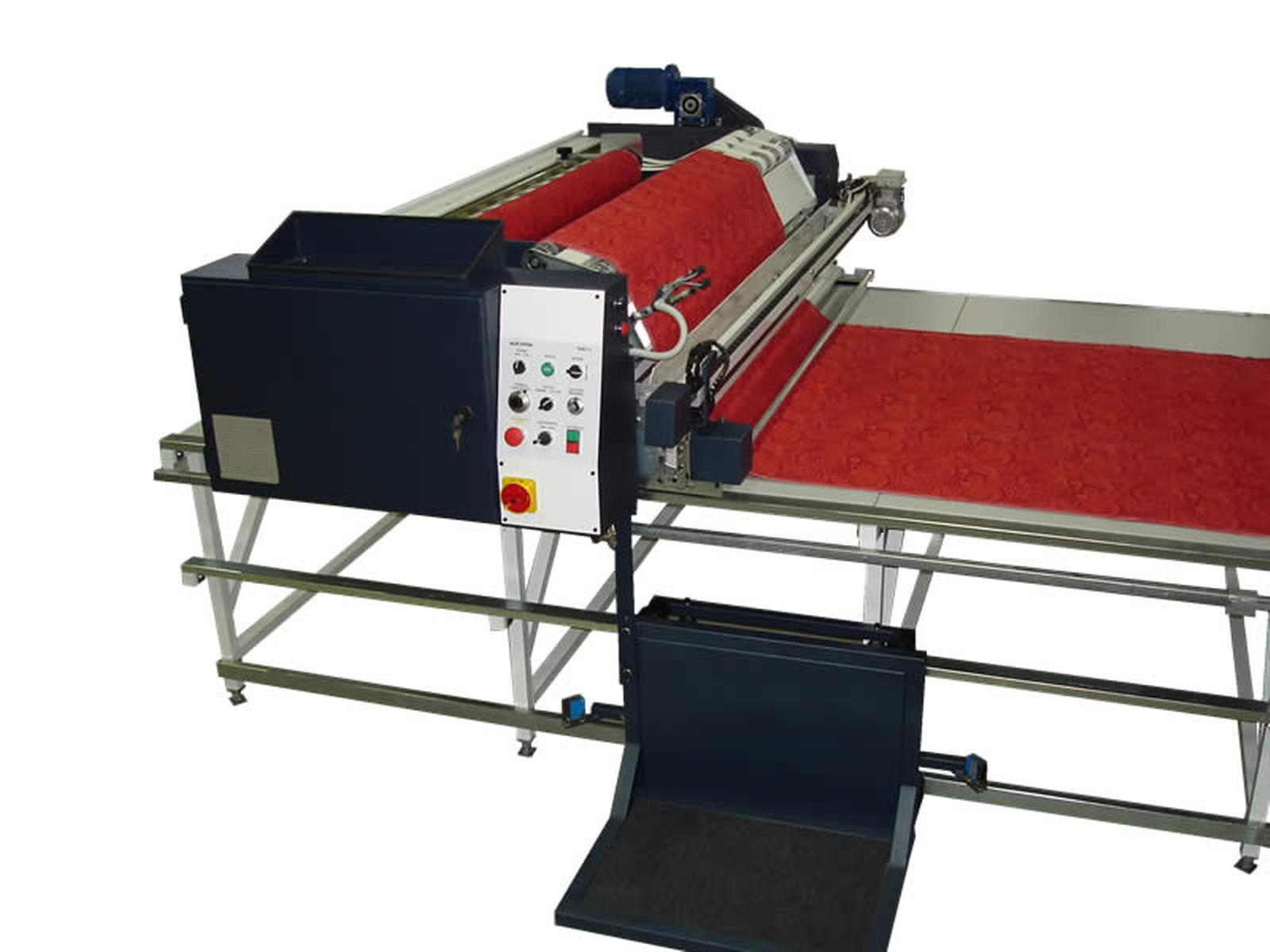

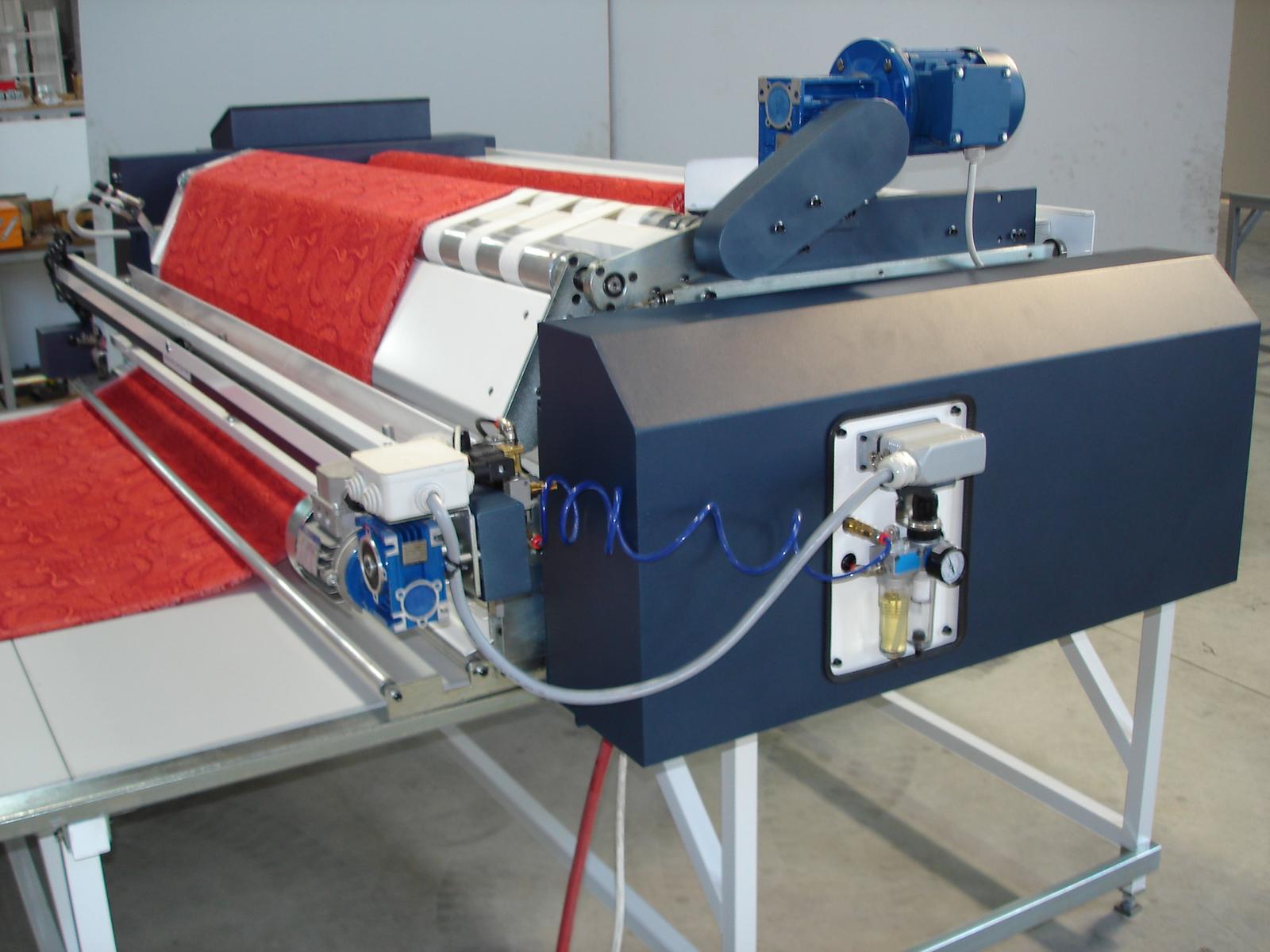

Multi-spreading Machine SALPE SYSTEM STAR 1.2
The multi-spreading STAR 1.2 is a distinctive product in textile industry. It spreads all kind of fabric, zig-zag or with scissors without butts as well as all fabrics, with close texture without a pilot. Given that it can be managed very simply and easy from a touch screen it is a useful machine for every producer of ready-made clothes. It’s motion is controlled by programmed logical regulators (PLC) and revolution regulators (INVERTER) for smooth start and stop. It can also carry one more roll of cloth apart from the one it spreads, for increased productivity. It has also an operator carrier for direct supervision of spreading.
Technical Characteristics
Maximum height of layers 200mm
Capacity of micro-regulation, especially for spreading elastic fabrics
Operator carrier for direct supervision of spreading
Easy passing of fabric
Dimensions
| Type | P 1900 | P 2200 | P 2500 |
| Maximum width | 2850 mm | 3150 mm | 3450 mm |
| Height | 1600 mm | 1600 mm | 1600 mm |
| Length | 1600 mm | 1600 mm | 1600 mm |
| Weight | 360 Kg | 380 Kg | 400 Kg |
| Function voltage | 230V 50Hz | ||
| Electric power | 2.3 KW | ||
| Effective width | 1680 mm | 1980 mm | 2280 mm |
